Qingdao Yankang IBC tank blow molding machine

Home / Products / IBC Tank Blow Molding Machine / Intermediate Bulk Containers Blow Molding Machine

Share to:

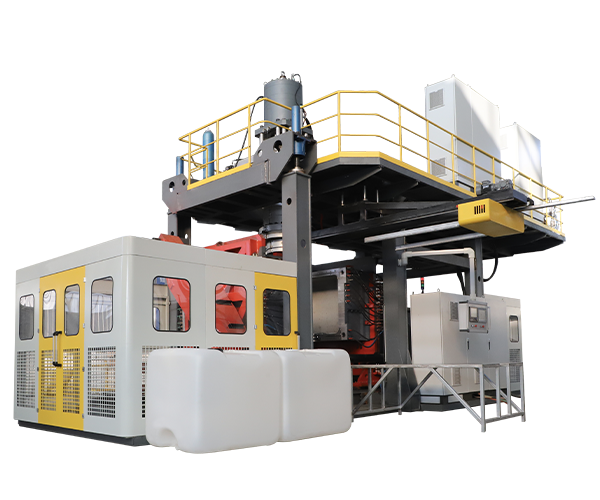

Intermediate Bulk Containers Blow Molding Machine

Intermediate Bulk Containers blow molding machine used to produce range from 200L to 2000L IBC tank.

In order to ensure the kind of blow molding machines are better adapted to the market, with modular design make the blow molding machine to easy install,adopt the servo pump and induction heaters ,more energy efficient .

IBC tank are widely used in many industries and are easy to transport .

Water Tank Daily Output: 100-300PC

Delivery Date: 3-4 Month

Availability:

Quantity:



Inquire

Intermediate Bulk Containers Blow Molding Machine

Configuration & Parameter

1. Intermediate Bulk Containers Blow Molding Machine Series

Intermediate Bulk Containers Blow Molding Machine used to produce range from 200L to 2000L IBC tank. IBC barrels are also widely used in daily life and are more common in the chemical, filling, and transportation fields. Its easy stacking feature saves space and is more economical and durable.

Intermediate Bulk Containers Blow Molding Machine
Model No.	Single Layer	2 Layers
Max. Product Size	2000L	2000L
Machine Dimension	5.7m10m6.5 m	5.7m10m6.5 m
Machine Weight	38ton	38ton
Total Power	217kw	360kw
Average Power Consumption	140kw	234kw
Accumulator Die Head
Accumulator capacity	33kg	33kg
Heating Load	30kw	30kw
Extrusion System
Screw Diameter	150mm	125/125mm
Extruder Motor Power	30:1	30:1
Heating Power	185kw	110/110kw
Plasticizing Capacity	400kg/h	500kg/h
Mold Clamping Unit
Clamping Platen Size	1800180080 mm	1800180080 mm
Max Mold Size	1600*1700 mm	1600*1700 mm
Clamping Force	2200kn	2200kn
Hydraulic System
Main Oil Pump Power	37kw	37kw
Small Oil Pump Power	7.5kw	7.5kw
Oil Tank Capacity	1000L	1000L

2. Leading International Technology

For example:

Use original SIEMENS control systems. Guarantee high quality, safe and stable operation. At the same time, it provides after-sales international services.

For more advanced configurations, please refer to the following figure.

SR	Description of Parts	Brand	Origin
1	PLC	SIEMENS	Germany
2	Touch Screen	SIEMENS	Germany
3	Inverter	SIEMENS	Germany
4	Screw Motor	SIEMENS	Germany
5	Air Switch	SIEMENS	Germany
6	Contactor	SIEMENS	Germany
7	SSR(Solid State Relay)	CARLO GAWAZZI	Switzerland
8	Wall Thickness Controller	MOOG	USA
9	Servo Valve	YUKEN	Japan
10	Hydraulic Valve	YUKEN	Japan
11	Solenoid Valve	YUKEN	Japan

3. Multi-layers Die Head Technology

First, multi-layer mold design makes the wall thickness uniform and stable. Second，it can increase production efficiency by 5 times. Finally，the utilization rate of recycled materials increased by 4 times.

yankang blow molding machine die head technology

Customer Service

1. Special Design
Qingdao Yankang Plastic Machinery Co., Ltd. is the largest professional blow molding machine integration enterprise in China, including product research and development, production, sales, and after-sales service. It is the pioneer and leader of the large blow molding machine. The company has its own professional research and development base.
The core technology is 100% independent R&d innovation. According to the needs of customers and the situation of the site, we can use the private customized model to create suitable products for customers.
Customized products: various blow molding machines including water tanks, IBC, road barriers, pallets, etc, and blow molds with different capacities.

2. After-sales Service
TRAINING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory during the periods of installing & adjusting;

INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines for one week(free of charge) in the Buyer's factory. After one week, if the Buyer still needs the training,$100 should be paid to the engineer.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in the buyer's factory. And the Buyer should also pay for the air ticket for the engineer.

GUARANTEE
The guarantee time is one year after the machines normally work in the Buyer's factory if only the problem is caused due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you on how to solve the problems.

3. Sales Network

Now, Qingdao Yankang Plastic Machinery Co., Ltd. has successfully occupied the world's major markets. With excellent quality assurance and perfect after-sales service, it has won high praise from customers at home and abroad. The company's products have spread to 45 countries and regions. These include Southeast Asia, the Middle East, Europe, the Americas, Australia, Africa, and so on. It has become the well-deserved "leader" in the blow molding machine industry in China.

Applications

IBC tank

FAQ

Q1: What is the warranty of the machine?

A1: The whole machine's warranty period is 12 months and key parts will be dependent.

Q2: Are you an integrated supplier for extrusion molding machines, mold, and auxiliary?

A2: Yes, we can provide the complete solution line to customers according to the customer's requirements.

Q3: How about the quality control in your factory?

A3: Yankang has the SOP (Standard Operation Procedure) and all the production steps must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment. .

Q4: Will you offer the pre-sales service?

A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold, and auxiliary selection but also water .electrical, machine layout in the factory, etc.

Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?

A5: Surely, we have many experience technical engineers for oversea service, they would help you install machines and support training to workers also.

Q6: What is the delivery time of the machine?

A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 2-3 months.

Q7: Mold trial will be available in the Yankang factory?

A7: Yes, the Customer can send the mold to the Yankang factory and test it.

Q8 . Do you provide any spare parts with the machine?

A8: Yes, Yankang will provide one set of standard spare parts to customers.
