Qingdao Yankang IBC tank blow molding machine

Home / Products / Septic Tank Blow Molding Machine / Plastic Septic Tank Making Machine

Share to:

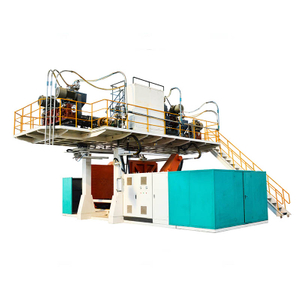

Plastic Septic Tank Making Machine

Plastic Septic Tank Making Machine is a specialized machine used in the production of plastic septic tanks. Septic tanks are underground sewage storage and treatment systems commonly used in residential, commercial, and industrial settings where access to a centralized sewage system is not available.

A septic tank is an underground tank made of plastic through which domestic wastewater (sewage) flows for basic sewage treatment.

Yankang brand septic tank making machine use advanced technology and processes to produce high-quality, durable plastic underground septic tanks. Anti-corrosion, low temperature resistance, service life can reach more than 30 years.

Septic Tank Daily Output: 100-300PC

Delivery Date: 3-4 Month

Availability:

Quantity:



Inquire

Plastic Septic Making Machine Product Description

Configuration & Parameter

1. Plastic Septic Tank Making Machine Series

	Specifications	2 layers
Extruders	Screw Diameter	∮100/100
	Motor	90/90kw
	Plasticizing Capacity	450 kg/h
	L/D	32/1
	Max Screw Speed	60 RPM
Die Head	Accumulator Capacity	94kg
	Heating Load	90kw
	Max. parison Weight	94kg
Clamping Unit	Clamping Platen Size	2100*2200mm
	Clamping Force	2200 KN
	Mould Thickness	1000-2200mm
Hydraulic System	Hydraulic Drive Motor (Main)	45kw
	Hydraulic Drive Motor (Parison Control)	7.5kw
	Oil Tank Capacity	1200L
Machine Weight		65 Ton
Dimension	LWH	12m4.5m7.2m
Total Power		350kw
Average Power Consumption		250kw

2. Leading International Technology

For example:

Use original SIEMENS control systems. Guarantee high quality, safe and stable operation. At the same time, it provides after-sales international services.

For more advanced configurations, please refer to the following figure.

SR	Description of Parts	Brand	Origin
1	PLC	SIEMENS	Germany
2	Touch Screen	SIEMENS	Germany
3	Inverter	SIEMENS	Germany
4	Screw Motor	SIEMENS	Germany
5	Air Switch	SIEMENS	Germany
6	Contactor	SIEMENS	Germany
7	SSR(Solid State Relay)	CARLO GAWAZZI	Switzerland
8	Wall Thickness Controller	MOOG	USA
9	Servo Valve	YUKEN	Japan
10	Hydraulic Valve	YUKEN	Japan
11	Solenoid Valve	YUKEN	Japan

3. Multi-layers Die Head Technology

First, multi-layer mold design makes the wall thickness uniform and stable. Second，it can increase production efficiency by 5 times. Finally，the utilization rate of recycled materials increased by 4 times.

yankang blow molding machine die head technology

Customer Service

1. Special Design

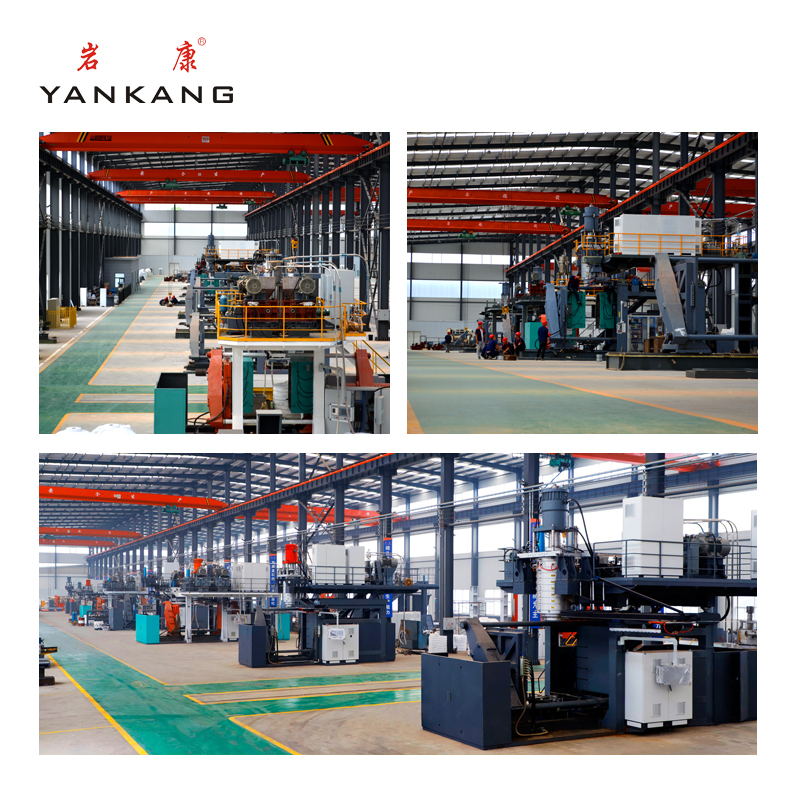

Qingdao Yankang Plastic Machinery Co., Ltd. is the largest professional blow molding machine integration enterprise in China, including product research and development, production, sales, and after-sales service. It is the pioneer and leader of the large blow molding machine. The company has its own professional research and development base.
The core technology is 100% independent R&d innovation. According to the needs of customers and the situation of the site, we can use the private customized model to create suitable products for customers.
Customized products: various blow molding machines including water tanks, IBC, road barriers, pallets, etc, and blow molds with different capacities.

2. After-sales Service
TRAINING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory during the periods of installing & adjusting;

INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines for one week(free of charge) in the Buyer's factory. After one week, if the Buyer still needs the training,$100 should be paid to the engineer.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in the buyer's factory. And the Buyer should also pay for the air ticket for the engineer.

GUARANTEE
The guarantee time is one year after the machines normally work in the Buyer's factory if only the problem is caused due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you on how to solve the problems.

3. Sales Network

Now, Qingdao Yankang Plastic Machinery Co., Ltd. has successfully occupied the world's major markets. With excellent quality assurance and perfect after-sales service, it has won high praise from customers at home and abroad. The company's products have spread to 45 countries and regions. These include Southeast Asia, the Middle East, Europe, the Americas, Australia, Africa, and so on. It has become the well-deserved "leader" in the blow molding machine industry in China.

Applications

Plastic septic tank making machines can produce septic tanks of various capacities and designs, depending on the specific requirements of the project. These tanks are known for their durability, corrosion resistance, and ease of installation.

septic tank

FAQ

Q1: How long is the warranty on this machine?

A1: The whole machine's warranty period is 12 months and key parts will be dependent.

Q2: Are you an integrated supplier for extrusion molding machines, mold, and auxiliary machinery?

A2: Yes, we can provide the complete solutions to customers according to the customer's requirements.

Q3: How about the quality control in your factory?

A3: Yankang has the SOP (Standard Operation Procedure) and all the production steps must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment. .

Q4: Will you offer the pre-sales service?

A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold, and auxiliary machinery selection but also water, electrical, machine layout in the factory, etc.

Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?

A5: Surely, we have many experience technical engineers for oversea service, they would help you install machines and support training to workers as well.

Q6: What is the delivery time of the machine?

A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 2-3 months.

Q7: Mold trial will be available in the Yankang factory?

A7: Yes, the customer can send the mold to the Yankang factory and test it.

Q8: Do you provide any spare parts with the machine?

A8: Yes, Yankang will provide one set of standard spare parts to customers.
